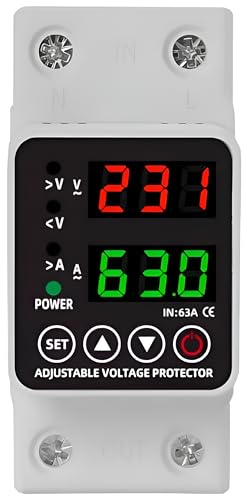

XPR3SS Automatic Over/Under Voltage and Over Load Protection (Adjustable Setting) Meter with Auto Re-Connect LED Display Standard Din-Rail Mounted Single Phase 220V, 63A (13.8kW)
Why do you need this?- To protect your home appliance from damage due to sudden voltage and current fluctuations. Multi-Protection: -This product cover all three protection range i,e Over voltage, under voltage and over load protection with action time of 0.1 sec.

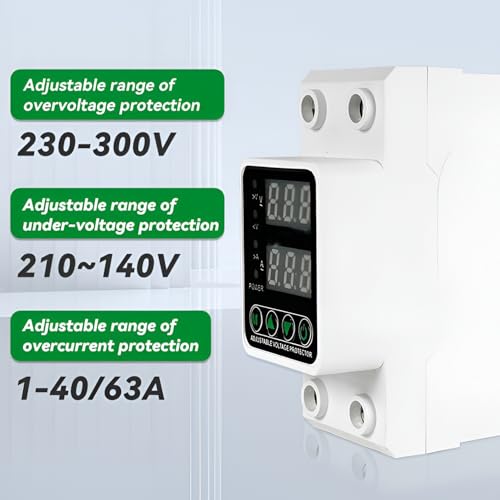

Range: – Over voltage protection ranging 130~300V, under voltage protection ranging 80~210V and over current protection ranging 1~63A. Auto Reconnect: – In case of voltage fluctuations, the device instantly cut off the power supply. When supply is back to normal, the device automatically reconnect.
Two separate digital LED display can display the real voltage, current independently for easier and clearer reading, can be used as a voltmeter and ammeter. The over-voltage, under-voltage and over-current values of this product can all be set up by yourself and can be adjusted on the basis of local practical condition.
Note:- Maximum sustainable voltage of this device is 350V. In case of surge this product will destroy itself without damaging your appliances. Your appliances will safe. Compatible Wire Size: – 16 mm² for loads up to 63A, 10 mm² for loads up to 45A, and 6 mm² for loads up to 35A.
